Microstructure
& Mechanical
Property

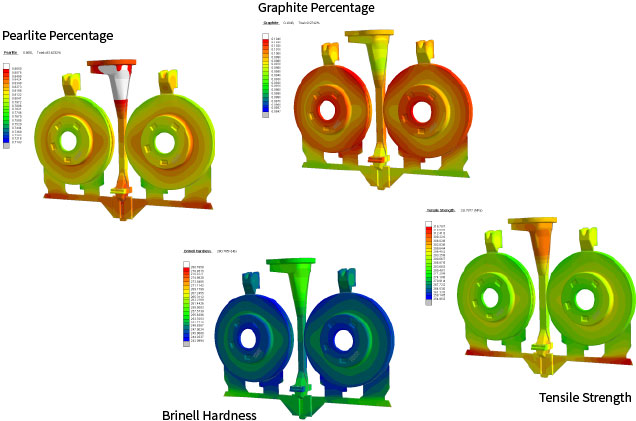

In the production of casting, in addition to defects that occur during filling and solidification, such as shrinkage or misrun, the structure and mechanical properties of the product after solidification is also important. AnyCasting’s Cast Iron module predicts the phase fraction and mechanical properties of ductile graphite cast iron and gray cast iron by entering the chemical composition of the alloy. When calculating the cast iron, the calculation is carried out until after the solid-state transformation temperature so that the phase fraction of the structure and the more accurate result of the nucleation growth of graphite can be predicted.
- Calculation of thermal properties through input of chemical composition
- Improved analysis accuracy through temperature - dependent data calculation
| Results | Unit | Ductile Cast Iron | Gray Cast Iron | |
|---|---|---|---|---|
| 1 | Graphite | Volume Fraction | o | o |
| 2 | Carbide | Volume Fraction | o | o |
| 3 | Ferrite | Volume Fraction | o | o |
| 4 | Pearlite | Volume Fraction | o | o |
| 5 | Brinell Hardness | HB | o | o |
| 6 | Tensile Strength | MPa | o | o |
| 7 | Yield Strenght | MPa | o | x |
| 8 | Elongation | % | o | x |
| 9 | Nodule Count | Nodule Count per Unit Area (1/mm2) | o | x |
| 10 | Cell Count | Cell Count per Unit Area (1/mm2) | x | o |
