HPDC - Understanding of Channel (Cooling & Heating Channel) settings and effects

11th June, 2021
View 894

Down

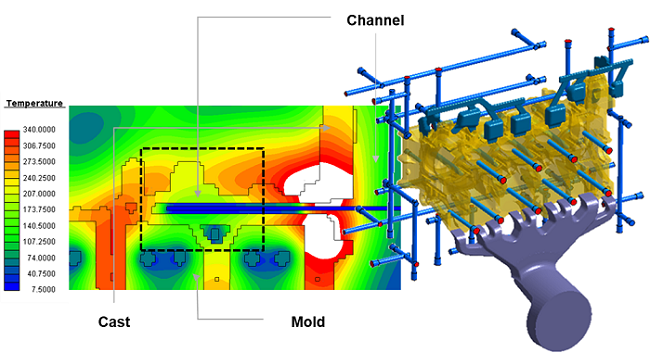

§A channel is used to cool the mold or maintain temperature

§Mostly used in die casting equipment and can alter the prediction of shrinkage defects depending on whether there is a channel or not

à Cycle analysis is recommended to check cooling effect
